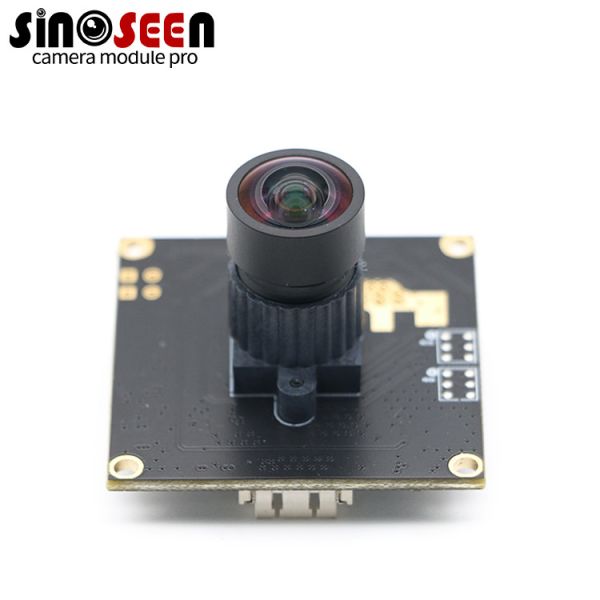

3840*2160 Fixed focus with USB interface 30FPS 8MP IMX317 CMOS sensor for Digital cameras driving recorders sports cameras
8MP 3840*2160 Fixed focus 30FPS camera module
The IMX317 is a high-performance CMOS image sensor known for its excellent image quality and 4K video capabilities. This 8MP camera module can capture video at 4K resolution (3840 x 2160 pixels) at 30 FPS, suitable for a variety of applications that require high-quality video capture. The module's fixed-focus lens design is suitable for applications where the working distance is known and adjustable focus is not required, which helps keep the overall size and complexity of the module low. The USB interface allows for easy integration with a variety of host devices, such as digital cameras, dash cams, sports cameras, and other platforms that support USB connectivity.
High-resolution 4K video capture and USB interface make this module a suitable choice for integration into digital cameras, providing high-quality image and video capabilities. The module's fixed focus and 4K video recording capabilities make it ideal for integration into dash cams and dash cams, providing detailed footage for security and surveillance purposes. The compact size, 4K video recording, and USB interface allow for easy integration into a variety of sports cameras and action cameras, providing high-quality video capture for outdoor activities and extreme sports. The 4K resolution and USB interface make this module suitable for integration into surveillance systems and security cameras, providing detailed video footage for monitoring and security applications. The module's compact size, 4K video capabilities, and USB interface facilitate integration into industrial equipment, machinery, and automation systems that require high-quality visual feedback or quality inspection.
Overall, this 8MP 4K camera module with IMX317 sensor, 30 FPS frame rate, and USB interface can be a versatile and high-quality solution for a wide range of applications that require compact, high-resolution camera systems and easy integration capabilities, such as digital cameras, dash cams, and action cameras.
Specification
| Module | SNS-DZ1009-V1.0 |
| Sensor | IMX317 CMOS |
| Image sensor size | 1/2.5 inch |
| Pixel | 8MP |
| Most effective pixels | 3840*2160 |
| Pixel Size | 1.62um*1.62um |
| Frame rate | 30fps |
| Focus type | Fixed focus |
| Output interface | USB2.0 |
| Video output | MJPG/YUV |
| Output formats | RAW Bayer 10bits |
| Max S/N ratio | TBD |
| Dynamic | TBD |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| Support OS | WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC |
|
|
